Galleon Time Synchronisation Products
Please view our products, if you don't see what you require just contact us, as we specialise in time synchronisation and can always modify the standard products to meet your specific requirements.

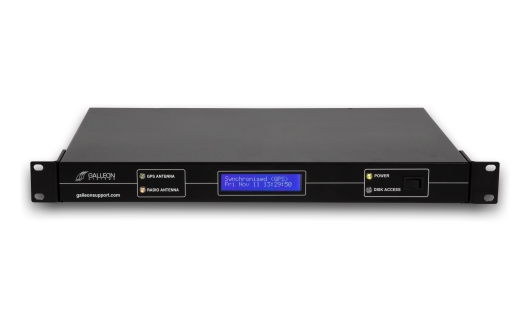

Rackmount NTP time server - NTS-6002-GPS »
Solid State NTP network time server (Atomic Clock GPS) Connects directly to Ethernet, fits in a standard 19" rack, incorporates a Galleon GPS Computer Clock, tracks up to 12 satellites, with remote antenna that can be positioned up to 1,000m (3,000 ft) away, an integral time display, Ethernet CAT5 connection and TimeSync NTP network time server software driver for unicast, broadcast or multi-cast time synchronization. Based on a LINUX platform. Configured across network via a browser interface. Can be peered with other NTP Timeservers for enhanced time synchronization security.
Solid state rack mount NTP time server - NTS-6001-GPS »
Solid State NTP network time server (Atomic Clock GPS) Connects directly to Ethernet, fits in a standard 19" rack, incorporates a Galleon GPS Computer Clock, tracks up to 12 satellites, with remote antenna that can be positioned up to 1,000m (3,000 ft) away, an integral time display, Ethernet CAT5 connection and TimeSync NTP network time server software driver for unicast, broadcast or multi-cast time synchronization. Based on a LINUX platform. Configured across network via a browser interface. Can be peered with other NTP Timeservers for enhanced time synchronization security.
Stand alone NTP time server - NTS-4000-R-GPS »
A simple to use NTP time server that receives accurate time from the GPS satellites and using NTP can provide this synchronised time via a Ethernet port to any computer, server, switch, etc that conforms to the Network Time Protocol V4. Can process 3,000 NTP requests per minute. Cable length from GPS antenna to controller 50m
SignalClocks 4 Digit IP Clock»
Power over Ethernet (PoE) digital wall clocks. Available in character height of 4" and with 4 (HH:MM) digits.
SignalClocks 6 Digit NTP Clock»
Power over Ethernet (PoE) digital wall clocks. Available in character height of 4" and with 6 (HH:MM:ss) digits.
Dedicated network NTP time server GPS
Stand alone NTP time server NTS-4000-S-GPS »
A simple to use NTP time server that receives accurate time from the GPS satellites and using NTP can provide this synchronised time via a Ethernet port to any computer, server, switch, etc that conforms to the Network Time Protocol V4. Can process 3,000 NTP requests per minute. Cable length from GPS antenna to controller 50m
GPS Clocks to Attach to a Server
Rack mount GPS clock and NTP server software - TS-900-GPS »
Rack mount GPS Clock with NTP time server software. Provides accurate time in any location world-wide by tracking up to 12 satellites, it supplies this time to the computer via a serial interface (USB optional). The software driver TimeSync NTP will synchronize the time on a Microsoft Windows 10 and Windows 8, and Server 2019 and Server 2016 NT, ME, XP, Vista, 7 or Server 2000, 2003, 2008, and can also synchronize PC's, workstations and other servers across the network. This software conforms to the Network Time Protocol (NTP) and can be set up as a Stratum 1 Time Server, Time-Sync runs as a service and configures as a NTP Timeserver so can synchronize UNIX machines and any equipment that conforms
to NTP. Consists of Rack mount (2U) mains powered ServerGPS Computer Clock with remote antenna up to 1,000m (3,000 ft) away, serial interface, LED signal display and power supply. Guaranteed to obtain a signal. Three year warranty.
Server GPS Clock and NTP Diver Software - TS-700-GPS »
Server GPS Satellite Clock. Serial interface, tracks up to 12 satellites, gives UTC time in any location worldwide. Software driver TimeSync NTP to synchronise the time on Microsoft Windows 10 and Windows 8, and Microsoft Server 2019 and Server 2016 NT, ME, XP, Vista, 7 or Server 2000, 2003, 2008, allows local time to be selected anywhere in the world, you can also synchronise PC's, workstations and other Windows servers across the network when using TimeSync NTP client. This software conforms to the Network Time Protocol (NTP) and can be set up as a Stratum 1 Time Server. Three year warranty.
Workstation PPS GPS clock and NTP driver software - TS-500-GPS »
WorkstationGPS Clock. Serial interface, tracks up to 8 satellites, provides synchronised time in any location world-wide, mains powered. Software driver is TimeSync NTP to synchronize the time on a single Windows Server or Workstation and can also synchronize PC's, workstations and other servers across the network. Consists of mains powered GPS Computer Clock with PPS for accuracy with antenna that can be positioned up to 15m away from the computer (5m supplied) and serial interface. Three year warranty.
Entry-Level GPS clock and NTP driver software - TS-400-GPS »
Entry-level GPS Clock. Serial interface, tracks up to 8 satellites, provides synchronised time in any location world-wide, mains powered. Software driver is TimeSync NTP to synchronize the time on a single Windows Server or Workstation but due to hardware limitations accuracy is only half a second. Consists of mains powered GPS Computer Clock, antenna that can be positioned up to 15m away from the computer (5m supplied).
Dedicated network NTP time server MSF
Rack mount NTP network time server - NTS-8000-MSF »
Connects directly to Ethernet, fits in a standard 19" rack, incorporates a Galleon GPS Clock with remote antenna that can be positioned up to 200m (600 ft) away with LED signal strength display for easy installation, an integral time display, serial interface, a NT workstation, Ethernet CAT5 connection, power supply and Time-Sync NTP network time server Software driver for unicast, broadcast or multi-cast time synchronization. Can process 3,000 NTP requests per minute.
Solid state rack mount NTP time server - NTS-6001-MSF »
Solid State NTP network time server (Atomic Radio Clock MSF) incorporates a Galleon Atomic Radio Computer Clock with remote antenna that can be positioned up to 600 ft (200m) away, an integral time display, Ethernet CAT5 connection and TimeSync NTP network time server Software driver for unicast, broadcast or multi-cast time synchronization. Based on a LINUX platform. Can process 10,000 NTP requests per minute.
Standalone NTP time server - NTS-4000-R-MSF »
A simple to use NTP time server that receives accurate time from the radio time signal (MSF) and using NTP can provide this synchronised time via a Ethernet port to any computer, server, switch, etc that conforms to the Network Time Protocol V4. Can process 3,000 NTP requests per minute.
Standalone NTP time server - NTS-4000-S-MSF »
A simple to use NTP time server that receives accurate time from the radio time signal (MSF) and using NTP can provide this synchronised time via a Ethernet port to any computer, server, switch, etc that conforms to the Network Time Protocol V4. Can process 3,000 NTP requests per minute.
Atomic Clocks to Attach to a Windows Server
Rack mount 2U atomic clock and NTP software - TS-900-MSF »
Rack mount MSF Clock with NTP time server software Time-Sync NTP will synchronise the time on Microsoft Windows 10, Windows 8, and Microsoft Server 2019, and Server 2016 NT, ME, XP, Vista, 7 or Server 2000, 2003, 2008, you can also synchronise PC's, workstations and other Windows servers across the network. Time-Sync runs as a service and configures as a NTP Timeserver (Stratum 1) so can synchronize UNIX machines and any equipment that conforms to NTP. Consists of Rack mount (2U) mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 200m (600 ft) away, integral Time display and signal strength indicator, serial interface, LED signal display, power supply and converter.
Guaranteed to provide an accurate time signal anywhere in the UK. Three year warranty.
Server ARC with remote antenna - TS-700-MSF »
Server ARC with remote antenna (IP65) and TimeSync NTP software to synchronise the time on Microsoft Windows 10, Windows 8, and Microsoft Server 2019, Server 2016 NT, ME, XP, Vista, 7 or Server 2000, 2003, 2008, you can also synchronise PC's, workstations and other Windows servers across the network when using TimeSync NTP client. This software conforms to the Network Time Protocol (NTP) and can be set up as a Stratum 1 Time Server. Consists of mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 200m (600 ft) away, integral Time display and signal strength indicator, serial interface (USB optional), LED signal display, power supply and converter. Synchronises to the UK MSF
radio time signal. Three year warranty.
Workstation atomic clock and NTP driver software - TS-500-MSF »
Workstation ARC with software to synchronise the time on a Windows computer. Consists of Software driver and Atomic Radio Controlled Computer Clock. Serial interface (USB optional), time, date and signal strength display. Software driver for Microsoft Windows 10, Windows 8, Microsoft Server 2019, or Server 2016 NT, 2000, XP, or 2003, runs as a service and configures as a NTP Timeserver. Three year warranty.
Professional atomic clock and NTP driver software - TS-300-MSF »
Professional atomic clock. Serial interface (USB optional) and TimeSync NTP software to synchronise the time on Microsoft Windows 10, Windows 8, or Microsoft Server 2019, Sever 2016, NT, ME, XP, Vista, 7 or Server 2000, 2003, 2008. You can also synchronise PC's, workstations and other Windows servers across the network when using TimeSync NTP client. This software conforms to the Network Time Protocol (NTP). Consists of mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 100m (300 ft) away, serial interface (USB optional), power supply and converter. One years warranty.
GPS PC Time synchronisation
Server GPS atomic clock with remote antenna - AC-700-GPS »
Server GPS Satellite Clock. Serial interface, tracks up to 12 satellites, gives UTC time in any location worldwide. GPS antenna can be mounted upto 1,000m from the Server GPS clock. Software driver to synchronise a single PC for Microsoft Windows 10 and Windows 8/7, 95 and 98 runs as an application. Three year warranty.
Entry Level GPS clock - AC-400-GPS »
Workstation GPS Clock. Serial interface, tracks up to 8 satellites, provides synchronised time in any location world-wide, mains powered. Software driver is to synchronize the time on a single Windows Server or Workstation but due to hardware limitations accuracy is only half a second. Consists of mains powered GPS Computer Clock, antenna can be positioned up to 15m away from the computer (5m supplied) and serial interface. One year warranty
Radio Controlled PC Time synchronisation
Server ARC atomic clock with remote antenna - AC-700-MSF »
Server ARC with remote antenna (IP65) Consists of mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 200m (600 ft) away, integral Time display and signal strength indicator, serial interface (USB optional), LED signal display, power supply and converter. Synchronises to the UK MSF time signal. Software driver to synchronise a single PC for Microsoft Windows 10 and 8, 95 and 98 runs as an application. Three year warranty.
Workstation atomic clock - AC-500-MSF »
Workstation ARC with Windows 32 Bit Stand Alone Atomic Radio Controlled Computer Clock. Serial interface (USB optional), time, signal strength and date display. Software driver to synchronise a single PC for Microsoft Windows 10 and Windows 8 95 and 98, runs as an application. Three year warranty.
Professional atomic clock - AC-300-MSF »
Professional atomic clock. Consists of mains powered Atomic Radio Controlled Computer Clock with remote antenna up to 100m (300 ft) away, serial interface (USB optional), power supply and converter. Software driver to synchronise a single PC for Microsoft Windows 10 and Windows 8 95 and 98, runs as an application. One years warranty.
Time and date atomic clock - AC-100-MSF »
This simple and robust device receives the MSF (time from NPL) signal to automatically update your system clock and simply plugs into a 9 pin D type serial port on the back of your computer. Installation takes only minutes using the software supplied One years warranty.
Digital Wall Clocks synchronised over Ethernet using NTP
4" Digital Wall Clock using hours & minutes - ARC/DWC/4/EN »
Digital Wall Clock 100mm (4") character height, characters HH:MM Ethernet and NTP interface to synchronise the time from a NTP Timeserver.
7" Digital Wall Clock using hours & minutes - ARC/DWC/7/EN »
Digital Wall Clock 175mm (7") character height, characters HH:MM Ethernet and NTP interface to synchronise the time from a NTP Timeserver.
4" Digital Wall Clock using hours, minutes & seconds - ARC/4/HMS/EN »
Digital Wall Clock 100mm (4") character height, characters HH:MM:ss Ethernet and NTP interface to synchronise the time from a NTP Timeserver.
7" Digital Wall Clock using hours, minutes & seconds - ARC/7/HMS/EN »
Digital Wall Clock 175mm (7") character height, characters HH:MM:ss Ethernet and NTP interface to synchronise the time from a NTP Timeserver
Time Receiver Modules
Modules to build your own time receiver »
EM2s receiver module, MCM RS232 microcontroller, and Ferrite antennas - all you need to build your own time receiver - ideal for hobbyists or product development!
Time-Synch SNTP client
Time Synch SNTP client - TSU/NTP »
Software to synchronise the time on client PC's, workstations and Windows servers across a Network. This client software requires that at least one Time-Sync NTP server with an Atomic Radio Clock or GPS Clock attached to be configured and active on the network, the time server will broadcast the time across the network/sub-domain and the SNTP clients will listen for this time broadcast. Client software runs on Windows 2003, XP, 2000, NT, 95, 98, and 3.1.
Time-Sync NTP unicast client - TSU/NTP »
Software to synchronise the time on client PC's, workstations and Windows servers across a Network. This client software requires that at least one Time-Sync NTP server with an Atomic Radio Clock or GPS Clock attached to be configured and active on the network. The NTP unicast client will request the time from the Time server and compensate for any network latency to ensure the most accurate time. Client software runs on Windows 2003, XP, 2000, NT, 95, 98, and 3.1.
Rack mount GPS NTP network time server - NTS-8000-GPS»
Using a GPS Atomic Clock, Rack Mount NTP network time server connects directly to Ethernet, fits in a standard 19" rack, incorporates a Galleon GPS Clock, tracks up to 12 satellites, with remote antenna that can be positioned up to 1,000 m (3,000 ft) away with LED signal strength display for easy installation, an integral time display, serial interface, Windows Server 2008, Ethernet CAT5 connection, power supply and TimeSync NTP network time server software driver for unicast, broadcast or multi-cast time synchronization.
