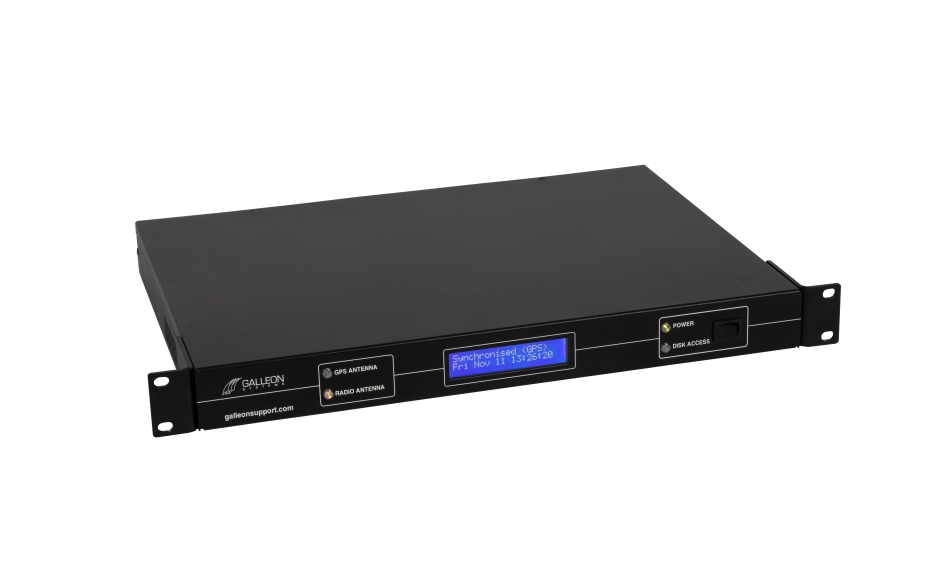

NTS-6002 Dual NTP Time Server GPS/MSF
NTS-6002-GPS-MSF NTP server a professional grade, highly accurate network timing device. The unit synchronises to connected GPS and radio antennas (stongest signal), always providing a secure time server source behind your fire wall.
- True Stratum 1 NTP Time Server
- Dual time reference inputs - GPS + MSF radio
- Web based configuration interface
- Handles >500,000 NTP requests per minute
- Solid State memory eliminates 'disk failure'
- Syslog error reporting
- Industry leading 6 year warranty
- Free product lifetime support
WWVB (North America) and DCF (Germany) radio receiver options are also available for this product
Request pricing » Product code: NTS-6002-GPS-MSF
NTS-6002-GPS-MSF - NTP Network Time Server with two independent time sources
The NTS-6002-GPS-MSF is an update to our best selling NTS-6001-GPS-MSF Unit. The Hardware has been upgraded to include a quad core CPU and reduce the power consumption of the unit.
NTS-6002-GPS-MSF Network Time Server combines a GPS receiver and an MSF radio time signal receiver with an embedded Linux solid state computer running and straight forward configuration and management via a web interface. This combination of GPS and radio time sources means that the unit will never be out of synchronisation as it will always take time from the strongest time source.
The unit connects directly to your network via a CAT5 Ethernet connection and fits in a standard 19" rack. This NTP server incorporates a GPS and radio-controlled computer clock. The GPS remote antenna tracks up to 12 satellites for increased precision and is fully weather proof (IP65) as it must be installed externally. The radio antenna should preferably also be mounted externally, but can also be mounted internally. The antenna can be mounted up to 1,000m (3,000ft) from the unit using an appropriate (optional) antenna extension kit.

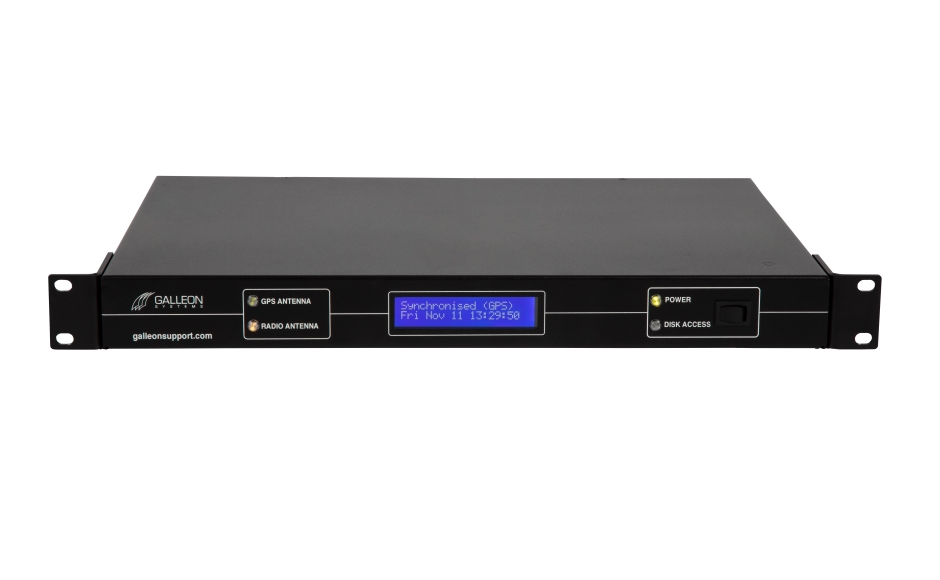

The NTS-6002-GPS-MSF has a backlit LCD display to show run-time information for both the GPS subsystem and the NTP server and to aid installation. The Software drivers conform to the Network Time Protocol Version 4 (NTP v4) and are available for uni-cast, broadcast or multi-cast NTP time synchronization. Configuration and management of the unit is straight forward via a web interface. The IP address of the unit can be configured by using DHCP to assign an IP address automatically or a fixed IP address can be used.

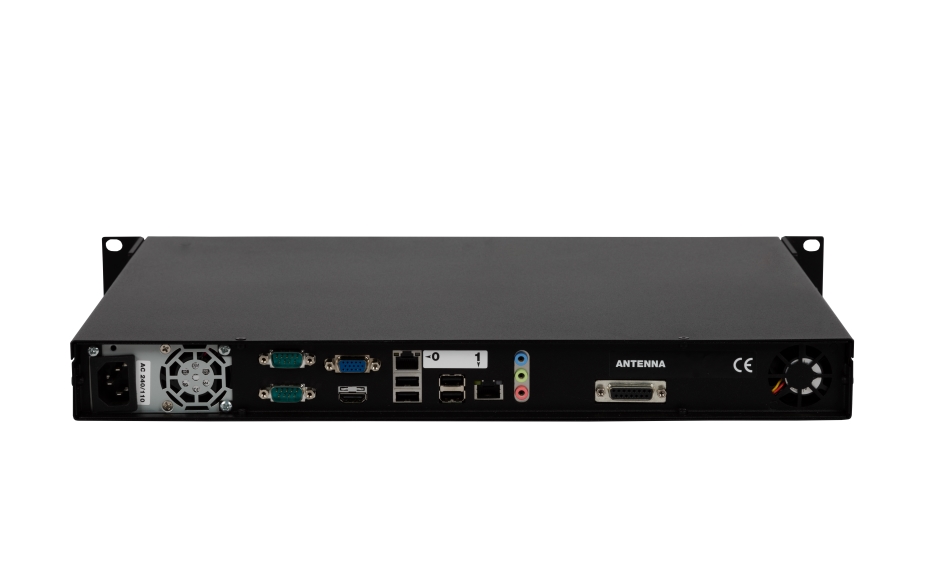

The NTS-6002-GPS-MSF has dual Ethernet ports enabling it to serve time to 2 independent networks and can handle more than 500,000 NTP requests per minute per network, making it the first choice for providing accurate time information to large networks with thousands of clients!
Key Benefits
- Ready-to-operate Secure Stratum 1 NTP Time Server
- Industry leading 6 year warranty
- Includes GPS active antenna + MSF radio time signal receiver
- Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
- Supports both IPv4 and IPv6 networks
- Configured across network via a secure browser interface by HTTPS (RFC2616) and Secure Shell (SSH)
- Dual RJ-45 Ethernet interfaces 10/100/1000 Mbit
- Supports NIC Teaming for fail over and redundancy
- Can handle more than 500,000 NTP requests per minute per port, ideal for large networks
- MD5/SHA authentication for advanced security
- Able to Peer with other NTP time servers for enhanced synchronization security
- Solid State Flash memory enables software upgrades and eliminates 'disk failure'
- Front Panel display for Time and Satellite and Radio time Status
- SNTP and NTP protocol support
- Syslog error reporting
Key Features
| Receiver: | 1) Primary receiver Active Antenna GPS 12 channel. 2) Secondary time receiver for the MSF radio time signal (WWVB, DCF also available) |
|---|---|
| Timing Accuracy: | Network: ± 8 milliseconds, typical GPS: <1 microseconds, relative to UTC |
| NTP Time Requests: | >500,000 requests per minute |
| Supported Networks: | Can supply time to 2 separate networks |
| Power Consumption: | 27 Watts |
| Housing: | Standard 19" rackmount (1U) |
| Dimensions (H × W × D): | 45mm × 425mm × 309mm |
| Display: | LCD Panel, 2 x 20 characters, with backlight |
| Operating System: | Linux |
| Protocols (NTP & SNTP): | NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131) SNTP: v3 (RFC 1769), v4 (RFC 2030) |
| Network Interface: | Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections |
| Power supply: | 85 - 260V, 47 - 63Hz |
| Operating Temperature: | 0-50°C / 32-122°F |
| Operating Humidity: | Max. 85% |

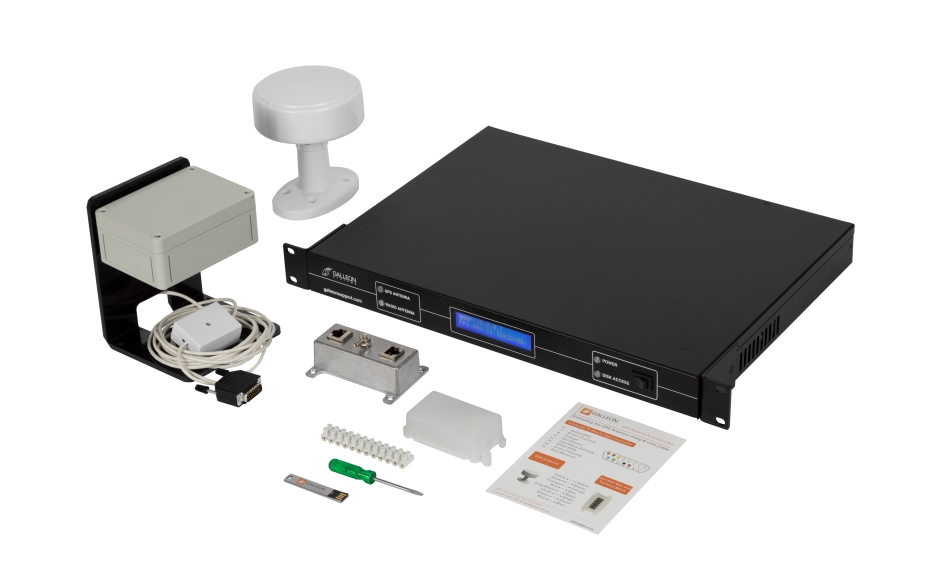

What's in the box
- NTS-6002-GPS-MSF Unit
- GPS Mushroom Antenna (with a 10m/8 Core Cable - not shown)
- MSF Radio Antenna (with a 5m/4 Core Cable - not shown)
- Power Lead
- NTP Software & Instruction Manual on a USB Stick
- Junction Box (used to extend antenna cable - if necessary)
- IDC Cable Tool (used to insert cable into the junction box- if necessary)
Additional Extras
The following products are also available for use with the NTS-6002 Dual NTP Time Server:
- Gold and Premium Support Packages
- Digital Wall Clocks
- Antenna Cable (100 to 1,000 metre rolls available)
- Additional Antenna Power Supply (Recommended from 150 metres onwards)
- Lightning Arrestor
- Additional Software Licenses (available from 5 to 300+ clients)
