NTP GPS
GPS clock and NTP server software
TS-700-GPS GPS Clock with NTP time server software, when added to a Windows Server or Workstation provides accurate NTP time in any location world-wide.
GPS Clock
The GPS clock supplies time to the computer via a serial interface (USB optional) and the software driver Time-Sync NTP will synchronize the time on a Windows workstation and configures as a NTP time server to provide accurate time to PC's, workstations and other servers across the network. This software conforms to the Network Time Protocol (NTP) and can be set up as a Stratum 1 Time Server, Time-Sync runs as a service and configures as a NTP Timeserver so can synchronize UNIX machines and any equipment that conforms to NTP.
Key Features
- Provides Stratum 1 NTP Time Server
- Support for NTP and SNTP compatible clients
- Installs as a service on a Windows Server.
- Front Panel display for Time and Satellite Status
- Digital wall clocks synchronised via network are optional
- Includes GPS active antenna.
- GPS antenna cable length can be extended up to 1,000m (3,000ft) if required.
- GPS antenna cable is simple 6 core alarm cable or cat5 cable.
- SNTP and NTP support
- Syslog error reporting
- Email warning if GPS synchronised time is lost
- 3 years warranty
Description

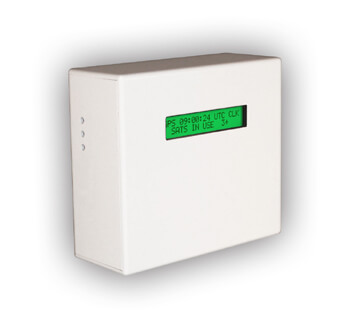

The Galleon TS-700-GPS consists of a GPS clock and software (TimeSync). The GPS clock is attached to Windows Server and the supplied Time-Sync software once installed configures as a Stratum 1 NTP time server.
A two line display shows run-time information for the GPS subsystem and UTC time.
The TS-700 provides an elegant solution ensuring that a Windows Server or a Domain Controller has accurate secure time behind the company firewall. In addition the Time-Sync service can supply NTP time to any other machine on the network.
Characteristics:
| Type of receiver: | Active Antenna GPS 12 channel. |
|---|---|
| Housing: | GPS clock: Wall mountable or free standing Antenna : Wall mounting bracket |
| Display: | LC-display, 2 x 20 characters, with backlight |
| Scope of supply: | The system will be delivered inclusive of GPS antenna. |
| Network Interface: | Via a Windows server or workstation |
| Interface to Server: | The TS-700-GPS connects to the Windows server or workstation by a RS232 serial interface. (USB optional) |
| Power supply: | 85 ... 260V, 47 ... 63Hz |
| Temperature: | 0 ... 50°C / 32 ... 122°F |
| Humidity: | Max. 85% |
| Timing Accuracy: | Network: +/- 20 milliseconds, typicalGPS: 1 microseconds, relative to UTC |
| Options: | USB interface to replace RS232 serial interface to Windows server or workstation Product code: USB-01 |
